ggeffects - Estimated Marginal Means and Adjusted Predictions from Regression Models

DOI Documentation downloads total

Lüdecke D (2018). ggeffects: Tidy Data Frames of Marginal Effects from Regression Models. Journal of Open Source Software, 3(26), 772. doi: 10.21105/joss.00772

Why do we need (marginal/conditional) effects or (adjusted) predicted values?

After fitting a model, it is useful generate model-based estimates (expected values, or adjusted predictions) of the response variable for different combinations of predictor values. Such estimates can be used to make inferences about relationships between variables - adjusted predictions tell you: what is the expected ouctome for certain values or levels of my predictors?

Adjusted predictions or marginal means are often easier to understand than raw regression coefficients. In particular, their visualization allows to intuitively get the idea of how predictors and outcome are associated, even for complex models.

Aims of this package

ggeffects is a light-weight package that aims at easily calculating adjusted predictions and estimated marginal means at meaningful values of covariates from statistical models. Furthermore, it is possible to compute contrasts or pairwise comparisons, to test predictions and differences in predictions for statistical significance. Finally, you can easily produce nice figures to visualize the results.

What you basically would need for your workflow is:

Three core ideas describe the philosophy of the function design and help users to achieve the above mentioned goals:

  1. Functions are type-safe and always return a data frame with the same, consistent structure;

  2. there is a simple, unique approach to calculate adjusted predictions and estimated marginal means for many different models;

  3. the package supports “labelled data” (Lüdecke 2018), which allows human readable annotations for graphical outputs.

This means, users do not need to care about any expensive steps after modeling to visualize the results. The returned as data frame is ready to use with the ggplot2-package, however, there is also a plot()-method to easily create publication-ready figures.

Adjusted predictions or estimated marginal means are always calculated on the response scale, which is the easiest and most intuitive scale to interpret the results.

It is easy to start, you just need one function: predict_response(), and two arguments: the model and the “focal terms”, i.e. the predictors that you are mainly interested in. Examples are shown below.

So, when do I need the ggeffects package?

You should use ggeffects

A workflow in R would then include using following functions in this order: predict_response(), plot(), and test_predictions() - that’s all you need! See also this example workflow using logistic regression.

Installation

CRAN parameters status badge

Type Source Command
Release CRAN install.packages("ggeffects")
Development r - universe install.packages("ggeffects", repos = "https://strengejacke.r-universe.dev")
Development GitHub remotes::install_github("strengejacke/ggeffects")

Or you can run ggeffects::install_latest() to install the latest development version from r-universe.

Adjusted predictions at…: marginalizing over non-focal predictors

predict_response() is a wrapper around three “workhorse” functions, ggpredict(), ggemmeans() and ggaverage(). Depending on the value of the margin argument, predict_response() calls one of those functions, with different arguments. It’s important to note that:

  1. Predictions are always returned on the response scale, no matter which model is used. This is the most intuitive scale to interpret your results (the predicted values).

  2. The response is predicted at the values or levels of your focal terms, i.e. you specify the predictors you are mainly interested in, using the terms argument. The predicted values are calculated for these values, while all other predictors are marginalized over.

The margin argument in predict_response() indicates how to marginalize over the non-focal predictors, i.e. those variables that are not specified in terms. Each option answers slightly different questions. Possible values are:

And what about marginal effects? Marginal effects refer to the difference between two adjacent predictions. They are not the same as marginal means or adjusted predictions. However, calculating contrasts or pairwise comparisons with test_predictions() can be used to test for differences in predictions (aka marginal effects).

Here’s an example:

library(ggeffects)
library(marginaleffects)
m <- lm(Petal.Width ~ Petal.Length + Species, data = iris)

# we want the marginal effects for "Species". We can calculate
# the marginal effect using the "marginaleffects" package
marginaleffects::avg_slopes(m, variables = "Species")
#>
#>                         Contrast Estimate Std. Error    z Pr(>|z|)    S 2.5 %
#>  mean(versicolor) - mean(setosa)    0.435      0.103 4.23   <0.001 15.4 0.234
#>  mean(virginica) - mean(setosa)     0.838      0.145 5.76   <0.001 26.9 0.553
#>  97.5 %
#>   0.637
#>   1.123
#>
#> Term: Species
#> Type:  response
#> Columns: term, contrast, estimate, std.error, statistic, p.value, s.value, conf.low, conf.high, predicted_lo, predicted_hi, predicted

# here we show that marginal effects refer to the difference between
# predictions for a one-unit change of "Species"
out <- predict_response(m, "Species", margin = "empirical")
out
#> # Average predicted values of Petal.Width
#>
#> Species    | Predicted |     95% CI
#> -----------------------------------
#> setosa     |      0.77 | 0.61, 0.94
#> versicolor |      1.21 | 1.15, 1.27
#> virginica  |      1.61 | 1.48, 1.74

# marginal effects of "versicolor", relative to "setosa"
out$predicted[2] - out$predicted[1]
#> [1] 0.44
# marginal effects of "virginica", relative to "setosa"
out$predicted[3] - out$predicted[1]
#> [1] 0.84

# finally, test_predictions() returns the same. while the previous results
# report the marginal effect compared to the reference level "setosa",
# test_predictions() returns the marginal effects for all pairwise comparisons
test_predictions(m, "Species")
#> # Pairwise comparisons
#>
#> Species              | Contrast |       95% CI |      p
#> -------------------------------------------------------
#> setosa-versicolor    |    -0.44 | -0.64, -0.23 | < .001
#> setosa-virginica     |    -0.84 | -1.12, -0.55 | < .001
#> versicolor-virginica |    -0.40 | -0.52, -0.29 | < .001

Documentation and Support

Please visit https://strengejacke.github.io/ggeffects/ for documentation and vignettes. For questions about the functionality, you may either contact me via email or also file an issue.

ggeffects supports many different models and is easy to use

Adjusted predictions can be calculated for many different models. Currently supported model-objects are: averaging, bamlss, bayesx, betabin, betareg, bglmer, bigglm, biglm, blmer, bracl, brglm, brmsfit, brmultinom, cgam, cgamm, clm, clm2, clmm, coxph, feglm, fixest, flac, flic, gam, Gam, gamlss, gamm, gamm4, gee, geeglm, glimML, glm, glm.nb, glm_weightit, glmer.nb, glmerMod, glmgee, glmmPQL, glmmTMB, glmrob, glmRob, glmx, gls, hurdle, ivreg, lm, lm_robust, lme, lmerMod, lmrob, lmRob, logistf, logitr, lrm, mblogit, mclogit, MCMCglmm, merModLmerTest, MixMod, mixor, mlogit, multinom, multinom_weightit, negbin, nestedLogit, nlmerMod, ols, ordinal_weightit, orm, phyloglm, phylolm, plm, polr, rlm, rlmerMod, rq, rqs, rqss, sdmTMB, speedglm, speedlm, stanreg, survreg, svyglm, svyglm.nb, tidymodels, tobit, truncreg, vgam, vglm, wblm, wbm, Zelig-relogit, zeroinfl, zerotrunc.

Support for models varies by marginalization method (the margin argument), i.e. although predict_response() supports most models, some models are only supported exclusively by one of the four downstream functions (ggpredict(), ggemmeans(), ggeffect() or ggaverage()). This means that not all models work for every margin option of predict_response(). Other models not listed here might work as well, but are currently not tested.

Interaction terms, splines and polynomial terms are also supported. There is a generic plot()-method to plot the results using ggplot2.

Examples

The returned data frames always have the same, consistent structure and column names, so it’s easy to create ggplot-plots without the need to re-write the function call. x and predicted are the values for the x- and y-axis. conf.low and conf.high could be used as ymin and ymax aesthetics for ribbons to add confidence bands to the plot. group can be used as grouping-aesthetics, or for faceting.

predict_response() requires at least one, but not more than four terms specified in the terms-argument. Predicted values of the response, along the values of the first term are calculated, optionally grouped by the other terms specified in terms.

Adjusted predictions for one focal predictor

library(ggeffects)
library(splines)
library(datawizard)
data(efc, package = "ggeffects")
efc <- to_factor(efc, c("c161sex", "e42dep"))
fit <- lm(barthtot ~ c12hour + bs(neg_c_7) * c161sex + e42dep, data = efc)

predict_response(fit, terms = "c12hour")
#> # Predicted values of barthtot
#>
#> c12hour | Predicted |       95% CI
#> ----------------------------------
#>       4 |     89.91 | 84.18, 95.63
#>      12 |     89.34 | 83.62, 95.06
#>      22 |     88.63 | 82.90, 94.36
#>      36 |     87.64 | 81.88, 93.40
#>      49 |     86.72 | 80.90, 92.53
#>      70 |     85.23 | 79.30, 91.16
#>     100 |     83.10 | 76.92, 89.29
#>     168 |     78.28 | 71.24, 85.33
#>
#> Adjusted for:
#> * neg_c_7 =       11.83
#> * c161sex =        Male
#> *  e42dep = independent

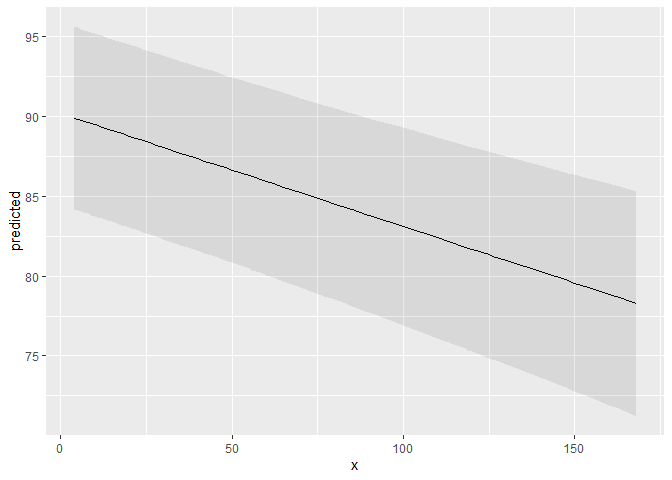

A possible call to ggplot could look like this:

library(ggplot2)
mydf <- predict_response(fit, terms = "c12hour")
ggplot(mydf, aes(x, predicted)) +
  geom_line() +
  geom_ribbon(aes(ymin = conf.low, ymax = conf.high), alpha = 0.1)

However, there is also a plot()-method. This method uses convenient defaults, to easily create the most suitable plot for the predictions.

mydf <- predict_response(fit, terms = "c12hour")
plot(mydf)

Adjusted predictions for several focal predictors

With three variables, predictions can be grouped and faceted.

result <- predict_response(fit, terms = c("neg_c_7", "c161sex", "e42dep"))
# we want a more compact table, thus we use `print()` explicitly
print(result, collapse_table = TRUE, collapse_ci = TRUE)
#> # Predicted values of barthtot
#>
#> neg_c_7 | c161sex |               e42dep |     Predicted (95% CI)
#> -----------------------------------------------------------------
#>       7 |    Male |          independent |  93.73 (87.01, 100.44)
#>      12 |         |                      |  86.89 (81.09,  92.70)
#>      17 |         |                      |  80.62 (73.69,  87.54)
#>      28 |         |                      | 148.54 (85.66, 211.42)
#>       7 |         |   slightly dependent |  87.41 (81.27,  93.56)
#>      12 |         |                      |  80.58 (76.32,  84.84)
#>      17 |         |                      |  74.31 (68.46,  80.15)
#>      28 |         |                      | 142.23 (79.71, 204.75)
#>       7 |         | moderately dependent |  78.29 (72.08,  84.49)
#>      12 |         |                      |  71.46 (67.64,  75.27)
#>      17 |         |                      |  65.18 (59.75,  70.60)
#>      28 |         |                      | 133.10 (70.44, 195.76)
#>       7 |         |   severely dependent |  41.93 (35.66,  48.21)
#>      12 |         |                      |  35.10 (30.98,  39.22)
#>      17 |         |                      |  28.82 (23.41,  34.24)
#>      28 |         |                      |  96.75 (34.08, 159.41)
#>       7 |  Female |          independent |  98.04 (93.06, 103.02)
#>      12 |         |                      |  86.61 (81.85,  91.37)
#>      17 |         |                      |  82.58 (77.33,  87.82)
#>      28 |         |                      |  81.57 (64.41,  98.73)
#>       7 |         |   slightly dependent |  91.73 (87.89,  95.57)
#>      12 |         |                      |  80.30 (77.43,  83.17)
#>      17 |         |                      |  76.26 (72.57,  79.96)
#>      28 |         |                      |  75.26 (58.64,  91.87)
#>       7 |         | moderately dependent |  82.60 (78.62,  86.59)
#>      12 |         |                      |  71.17 (68.79,  73.56)
#>      17 |         |                      |  67.14 (63.95,  70.33)
#>      28 |         |                      |  66.13 (49.52,  82.74)
#>       7 |         |   severely dependent |  46.25 (41.93,  50.57)
#>      12 |         |                      |  34.82 (32.27,  37.37)
#>      17 |         |                      |  30.78 (27.67,  33.90)
#>      28 |         |                      |  29.78 (13.33,  46.23)
#>
#> Adjusted for:
#> * c12hour = 42.10

ggplot(result, aes(x = x, y = predicted, colour = group)) +
  geom_line() +
  facet_wrap(~facet)

plot() works for this case, as well:

plot(result)

Contrasts and pairwise comparisons

Next, an example of an interaction term. We want to know whether the two slopes are significantly different from each other.

fit <- lm(neg_c_7 ~ c12hour + barthtot * c161sex + e42dep, data = efc)
result <- predict_response(fit, c("barthtot", "c161sex"))
plot(result)

This can be achieved by test_predictions().

test_predictions(result)
#> # (Average) Linear trend for barthtot
#>
#> c161sex     | Contrast |      95% CI |     p
#> --------------------------------------------
#> Male-Female |     0.01 | -0.01, 0.03 | 0.466

We can conclude that slopes (or “linear trends”) of barthtot for the different groups of c161sex are not statistically significantly different from each other.

More features are explained in detail in the package-vignettes.

Citation

In case you want / have to cite my package, please use citation('ggeffects') for citation information:

Lüdecke D (2018). ggeffects: Tidy Data Frames of Marginal Effects from Regression Models. Journal of Open Source Software, 3(26), 772. doi: 10.21105/joss.00772

References

Dickerman, Barbra A., and Miguel A. Hernán. 2020. “Counterfactual Prediction Is Not Only for Causal Inference.” European Journal of Epidemiology 35 (7): 615–17. https://link.springer.com/article/10.1007/s10654-020-00659-8.
Lüdecke, Daniel. 2018. “Sjlabelled: Labelled Data Utility Functions,” May. https://doi.org/10.5281/zenodo.1249215.
